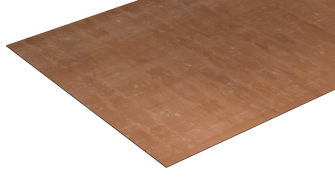

Copper Sheet

Copper sheet is offered in C10100 (H02 half hard), C10100 (060 soft anneal), C11000 ETP Copper (Cold Rolled 1/8-1/4 hard), C11000 ETP Copper (H02 half hard), C11000 ETP Copper (060 soft anneal), and C11000 ASTM B370 (H00 eighth hard), and C12200 DHP Copper (Cold Rolled)

C10100

Description

Oxygen-free, high-conductivity copper, C10100 (electronic grade) is undoubtedly the purest copper commercially available and possess a unique set of properties. For example, it's freedom from oxygen, as the name implies, gives it immunity to hydrogen embrittlement when exposed to elevated temperatures under reducing conditions.

Typical Uses

Coaxial cables, computer hook-up wire, heat sinks for diodes, rectifiers,and other components, lead wire for circuit breakers and modules, microwave equipment, radar components, solderless connectors and wave guides.

TemperThicknessWidth x LengthPurchase Small QuantitiesQuote or Buy from Copper and Brass Sales
H02 (half-hard)0.01 - 0.12536 x 96Buy From Online Metals NowQuote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

Description

Oxygen-free, high-conductivity copper, C10100 (electronic grade) is undoubtedly the purest copper commercially available and possess a unique set of properties. For example, it's freedom from oxygen, as the name implies, gives it immunity to hydrogen embrittlement when exposed to elevated temperatures under reducing conditions.

Typical Uses

Coaxial cables, computer hook-up wire, heat sinks for diodes, rectifiers,and other components, lead wire for circuit breakers and modules, microwave equipment, radar components, solderless connectors and wave guides.

TemperThicknessWidth x LengthQuote or Buy from Copper and Brass Sales
060 (soft anneal)0.02 - 0.12536 x 96Quote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

C11000

Description

Also called Electrolytic Tough Pitch (ETP) copper, C11000 has aminimum copper plus silver content of 99.90% with about 200-600ppm (0.02-0.06%) oxygen present as cuprous oxide. This copper is noted for its high electrical and thermal conductivity, good corrosion resistance and solderability, and characteristic copper color.

Typical Uses

Ball floats, building fronts, bus bars, wire conductors, contacts, cotter pins, downspouts, flashing, gaskets, gutters, kettles, nails, pans, printing rolls, radiators, radio parts, rivets, screening, soldering copper, switches, tacks, and terminals.

TemperThicknessWidth x LengthPurchase Small QuantitiesQuote or Buy from Copper and Brass Sales
Cold Rolled0.027 - 0.2536 x 96Buy From Online Metals NowQuote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

Description

Also called Electrolytic Tough Pitch (ETP) copper, C11000 has aminimum copper plus silver content of 99.90% with about 200-600ppm (0.02-0.06%) oxygen present as cuprous oxide. This copper is noted for its high electrical and thermal conductivity, good corrosion resistance and solderability, and characteristic copper color.

Typical Uses

Ball floats, building fronts, bus bars, wire conductors, contacts, cotter pins, downspouts, flashing, gaskets, gutters, kettles, nails, pans, printing rolls, radiators, radio parts, rivets, screening, soldering copper, switches, tacks, and terminals.

TemperThicknessWidth x LengthPurchase Small QuantitiesQuote or Buy from Copper and Brass Sales
H02 (half-hard)0.01 - 0.18736 x 96Buy From Online Metals NowQuote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

Description

Also called Electrolytic Tough Pitch (ETP) copper, C11000 has aminimum copper plus silver content of 99.90% with about 200-600ppm (0.02-0.06%) oxygen present as cuprous oxide. This copper is noted for its high electrical and thermal conductivity, good corrosion resistance and solderability, and characteristic copper color.

Typical Uses

Ball floats, building fronts, bus bars, wire conductors, contacts, cotter pins, downspouts, flashing, gaskets, gutters, kettles, nails, pans, printing rolls, radiators, radio parts, rivets, screening, soldering copper, switches, tacks, and terminals.

TemperThicknessWidth x LengthPurchase Small QuantitiesQuote or Buy from Copper and Brass Sales
O60 (soft anneal)0.0216 - 0.187536 x 96Buy From Online Metals NowQuote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

Description

Commonly referred to as roofing copper, certified to the ASTM B 370 specification and is 99% pure copper.

Typical Uses

Roofing / Architecture

TemperThicknessWidth x LengthPurchase Small QuantitiesQuote or Buy from Copper and Brass Sales
H00 (eighth-hard)12 Oz - 32 Oz36 x 96Buy From Online Metals NowQuote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.

C12200

Description

C12200 Deoxidized High Phosphorus (DHP) copper has almost exactly the same mechanical properties as the high purity copper alloys such as C11000. It has excellent deep drawing characteristics and resistance to pitting corrosion when exposed to severe weather and water environments.

Typical Uses

Tubes for hot and cold water, gas and heating installations, soil and waste pipes, storage tanks, cisterns and cylinders, rainwater goods, roofing, fascias, building facades, evaporators, heat exchangers, stills, vats, chemical equipment, and anodes for electroplating baths.

ThicknessWidth x LengthQuote or Buy from Copper and Brass Sales
0.0216 - 0.06448 x 120Quote or Buy from Copper and Brass Sales on PLUS

Additional dimensions in this grade may be available upon request. Contact us for more information.
