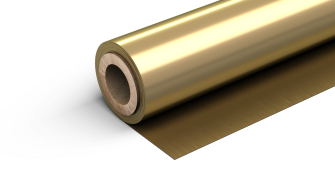

Brass Coil & Strip

Search by Grade

brass coil supplier thyssenkrupp materials na

We have many grades of brass coil in stock, but if you cannot find what you are looking for, please contact us and we will do our best to find it for you.

All sizes listed are in inches, unless otherwise noted.

C21000 Brass Coil & Strip Products

Description

Known as gilding metal, C210 is an economical alloy with moderate conductivity and above average strength.

Typical Uses

Used in deep drawn parts and electrical applications.

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.064	(±.0015)	2.9491
0.125	(±.002)	5.7600

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.064	(±.0015)	2.9491
0.125	(±.002)	5.7600

Additional dimensions in this grade may be available upon request. Contact us for more information.

C22000 Brass Coil & Strip Products

Temper	Thickness	Thickness Tolerance	Pounds Per Square Foot
O60 (soft anneal)	0.0110	(±.0004)	0.5037
O60 (soft anneal)	0.0200	(±.00065)	0.9158
O60 (soft anneal)	0.0200	(±.0005)	0.9158
O60 (soft anneal)	0.0230	(±.0005)	1.0532
H03 (three-quarter hard)	0.0320	(±.001)	1.4653
H04 (hard)	0.0320	(±.001)	1.4653
O60 (soft anneal)	0.0320	(±.001)	1.4653
H04 (hard)	0.0420	(±.001)	1.9233
H04 (hard)	0.0450	(±.001)	2.0606
O60 (soft anneal)	0.0500	(±.00125)	2.2896
O60 (soft anneal)	0.0620	(±.00125)	2.8391
O60 (soft anneal)	0.0900	(±.002)	4.1213
O60 (soft anneal)	0.1000	(±.002)	4.5792
H02 (half-hard)	0.1250	(±.002)	5.724
O60 (soft anneal)	0.1250	(±.002)	5.724

Temper	Thickness	Thickness Tolerance	Pounds Per Square Foot
O60 (soft anneal)	0.0110	(±.0004)	0.5037
O60 (soft anneal)	0.0200	(±.00065)	0.9158
O60 (soft anneal)	0.0200	(±.0005)	0.9158
O60 (soft anneal)	0.0230	(±.0005)	1.0532
H03 (three-quarter hard)	0.0320	(±.001)	1.4653
H04 (hard)	0.0320	(±.001)	1.4653
O60 (soft anneal)	0.0320	(±.001)	1.4653
H04 (hard)	0.0420	(±.001)	1.9233
H04 (hard)	0.0450	(±.001)	2.0606
O60 (soft anneal)	0.0500	(±.00125)	2.2896
O60 (soft anneal)	0.0620	(±.00125)	2.8391
O60 (soft anneal)	0.0900	(±.002)	4.1213
O60 (soft anneal)	0.1000	(±.002)	4.5792
H02 (half-hard)	0.1250	(±.002)	5.724
O60 (soft anneal)	0.1250	(±.002)	5.724

C23000 Brass Coil & Strip Products

Description

Commonly known as red brass, C230 can be polished to display its own natural color and has moderate strength.

Typical Uses

Decorative, architectural, and industrial applications.

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.008	(±.0005)	0.3640
0.01	(±.0005)	0.4550
0.012	(±.0005)	0.5460
0.013	(±.0005)	0.5916
0.014	(±.0005)	0.6371
0.015	(±.0005)	0.6826
0.016	(±.0005)	0.7281
0.018	(±.0005)	0.8191
0.02	(±.0005)	0.9101
0.028	(±.001)	1.2741
0.032	(±.0005)	1.4561
0.04	(±.001)	1.8202
0.05	(±.001)	202752
0.057	(±.00125)	2.5937
*0.063	(±.001)	2.8668
0.064	(±.001)	2.9123
0.08	(±.002)	3.6403
0.102	(±.002)	4.6414
0.125	(±.002)	5.6880

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.008	(±.0005)	0.3640
0.01	(±.0005)	0.4550
0.012	(±.0005)	0.5460
0.013	(±.0005)	0.5916
0.014	(±.0005)	0.6371
0.015	(±.0005)	0.6826
0.016	(±.0005)	0.7281
0.018	(±.0005)	0.8191
0.02	(±.0005)	0.9101
0.028	(±.001)	1.2741
0.032	(±.0005)	1.4561
0.04	(±.001)	1.8202
0.05	(±.001)	202752
0.057	(±.00125)	2.5937
*0.063	(±.001)	2.8668
0.064	(±.001)	2.9123
0.08	(±.002)	3.6403
0.102	(±.002)	4.6414
0.125	(±.002)	5.6880

Additional dimensions in this grade may be available upon request. Contact us for more information.

*H02 (half hard)

C26000 Brass Coil & Strip Products

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.005	(±.0002)	0.2218
0.007	(±.0005)	0.3105
0.008	(±.0003)	0.3548
0.009	(±.0003)	0.3992
0.01	(±.0003)	0.4435
0.011	(±.0003)	0.4879
0.012	(±.0003)	0.5322
0.013	(±.0005)	0.5766
0.014	(±.0005)	0.6209
0.015	(±.0005)	0.6653
0.016	(±.00065)	0.7096
0.017	(±.00065)	0.7540
0.018	(±.00065)	0.7983
0.019	(±.00065)	0.8427
0.02	(±.00065)	0.8870
0.025	(±.00075)	1.1088
0.028	(±.0005)	1.2419
0.03	(±.001)	1.3306
0.032	(±.001)	1.4193
0.035	(±.001)	1.5523
0.036	(±.001)	1.5967
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.001)	2.2176
0.057	(±.00125)	2.5281
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385
0.08	(±.0015)	3.5482
0.09	(±.002)	3.9917
0.093	(±.002)	4.1247
0.1	(±.002)	4.4352
0.125	(±.002)	5.5440
0.15	(±.0035)	6.6528

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.005	(±.0002)	0.2218
0.007	(±.0005)	0.3105
0.008	(±.0003)	0.3548
0.009	(±.0003)	0.3992
0.01	(±.0003)	0.4435
0.011	(±.0003)	0.4879
0.012	(±.0003)	0.5322
0.013	(±.0005)	0.5766
0.014	(±.0005)	0.6209
0.015	(±.0005)	0.6653
0.016	(±.00065)	0.7096
0.017	(±.00065)	0.7540
0.018	(±.00065)	0.7983
0.019	(±.00065)	0.8427
0.02	(±.00065)	0.8870
0.025	(±.00075)	1.1088
0.028	(±.0005)	1.2419
0.03	(±.001)	1.3306
0.032	(±.001)	1.4193
0.035	(±.001)	1.5523
0.036	(±.001)	1.5967
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.001)	2.2176
0.057	(±.00125)	2.5281
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385
0.08	(±.0015)	3.5482
0.09	(±.002)	3.9917
0.093	(±.002)	4.1247
0.1	(±.002)	4.4352
0.125	(±.002)	5.5440
0.15	(±.0035)	6.6528

Description

C26000 Cartridge Brass is the most ductile of the brasses and is used in greater quantity than any other copper-zinc alloy. C26000 has excellent to good corrosion resistance in most environments, but is not suitable for use with certain materials, such as acetic acid, moist ammonia or ammonia compounds, hydrochloric acid and nitric acid.

Typical Uses

Heater cores, thermostats, electrical connectors, radiator tube, locks, finish hardware, decorative hardware, electrical sockets, lamps, terminal connectors, lamp fixtures, ammunition cartridge cases, lighters, bathroom fixtures, plumbing accessories, and brass goods.

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.01	(±.0004)	0.4435
0.012	(±.0004)	0.5322
0.015	(±.0005)	0.6653
0.016	(±.0005)	0.7096
0.02	(±.00065)	0.8870
0.0236	(±.0003)	1.0467
0.025	(±.0005)	1.1088
0.025	(±.00075)	1.1088
0.031	(±.0005)	1.3749
0.0315	(±.0005)	1.3971
0.032	(±.0005)	1.4193
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.001)	2.2176
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385
0.07	(±.002)	3.1046
0.08	(±.0015)	3.5482
0.093	(±.0015)	4.1247
0.1	(±.002)	4.4352
0.118	(±.002)	5.2335
0.125	(±.002)	5.5440
0.188	(±.004)	8.3382

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.01	(±.0004)	0.4435
0.012	(±.0004)	0.5322
0.015	(±.0005)	0.6653
0.016	(±.0005)	0.7096
0.02	(±.00065)	0.8870
0.0236	(±.0003)	1.0467
0.025	(±.0005)	1.1088
0.025	(±.00075)	1.1088
0.031	(±.0005)	1.3749
0.0315	(±.0005)	1.3971
0.032	(±.0005)	1.4193
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.001)	2.2176
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385
0.07	(±.002)	3.1046
0.08	(±.0015)	3.5482
0.093	(±.0015)	4.1247
0.1	(±.002)	4.4352
0.118	(±.002)	5.2335
0.125	(±.002)	5.5440
0.188	(±.004)	8.3382

Additional dimensions in this grade may be available upon request. Contact us for more information.

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.016	(±.0005)	0.7096
0.02	(±.00065)	0.8870
0.025	(±.00075)	1.1088
0.031	(±.005)	1.3749
0.032	(±.001)	1.4193
0.04	(±.001)	1.7741
0.05	(±.001)	2.2176
0.06	(±.00125)	2.6611
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.016	(±.0005)	0.7096
0.02	(±.00065)	0.8870
0.025	(±.00075)	1.1088
0.031	(±.005)	1.3749
0.032	(±.001)	1.4193
0.04	(±.001)	1.7741
0.05	(±.001)	2.2176
0.06	(±.00125)	2.6611
0.062	(±.00125)	2.7498
0.064	(±.00125)	2.8385

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.025	(±.00075)	1.1088
0.0315	(±.0005)	1.3971
0.05	(±.001)	2.2176

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.025	(±.00075)	1.1088
0.0315	(±.0005)	1.3971
0.05	(±.001)	2.2176

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.016	(±.0005)	.07096
0.02	(±.00065)	0.8870
0.032	(±.0004)	1.4193
0.032	(±.001)	1.4193
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.00125)	2.2176
0.0625	(±.00125)	2.7720

Thickness (inches)	Thickness Tolerance	Pounds Per Square Foot
0.016	(±.0005)	.07096
0.02	(±.00065)	0.8870
0.032	(±.0004)	1.4193
0.032	(±.001)	1.4193
0.04	(±.001)	1.7741
0.045	(±.001)	1.9958
0.05	(±.00125)	2.2176
0.0625	(±.00125)	2.7720
